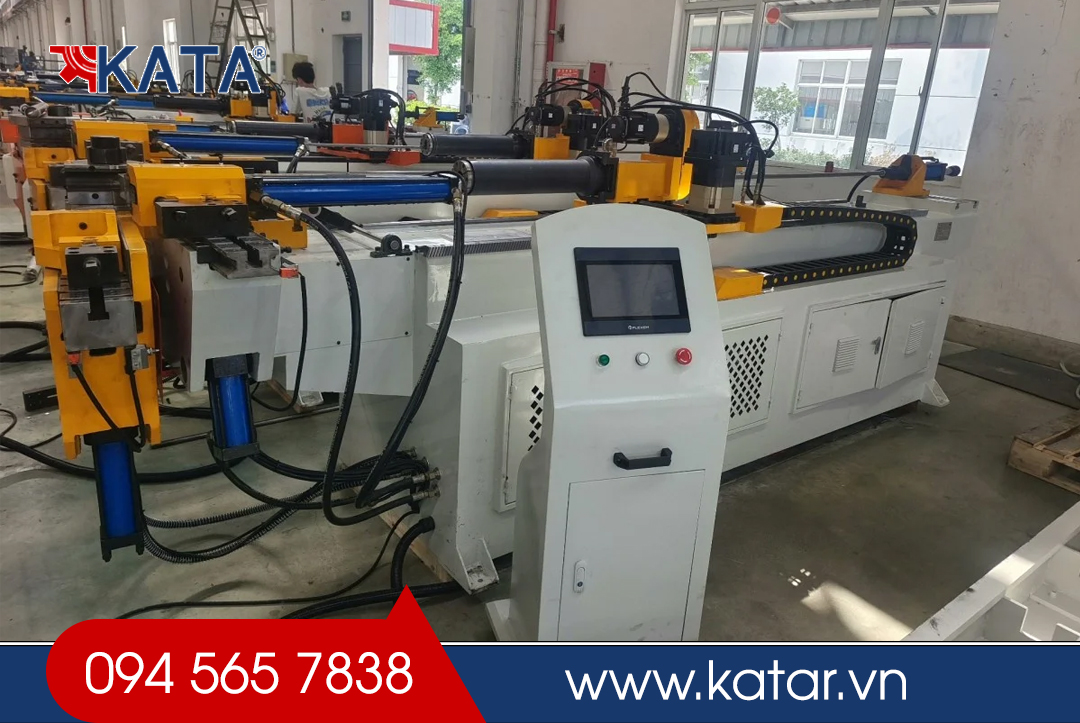

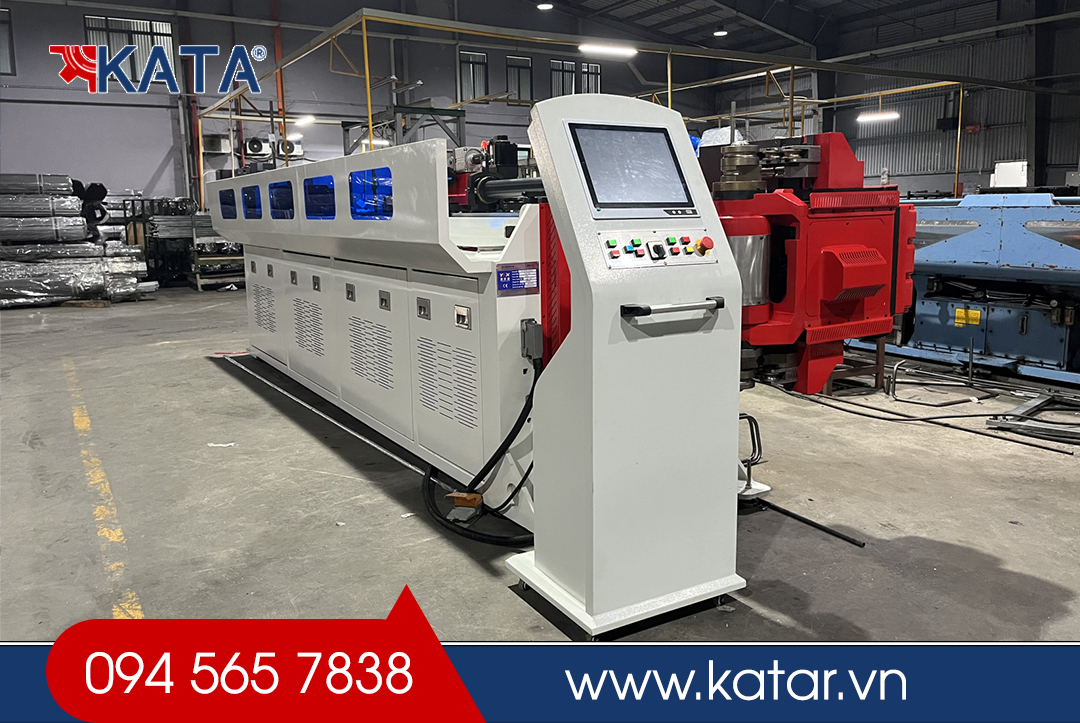

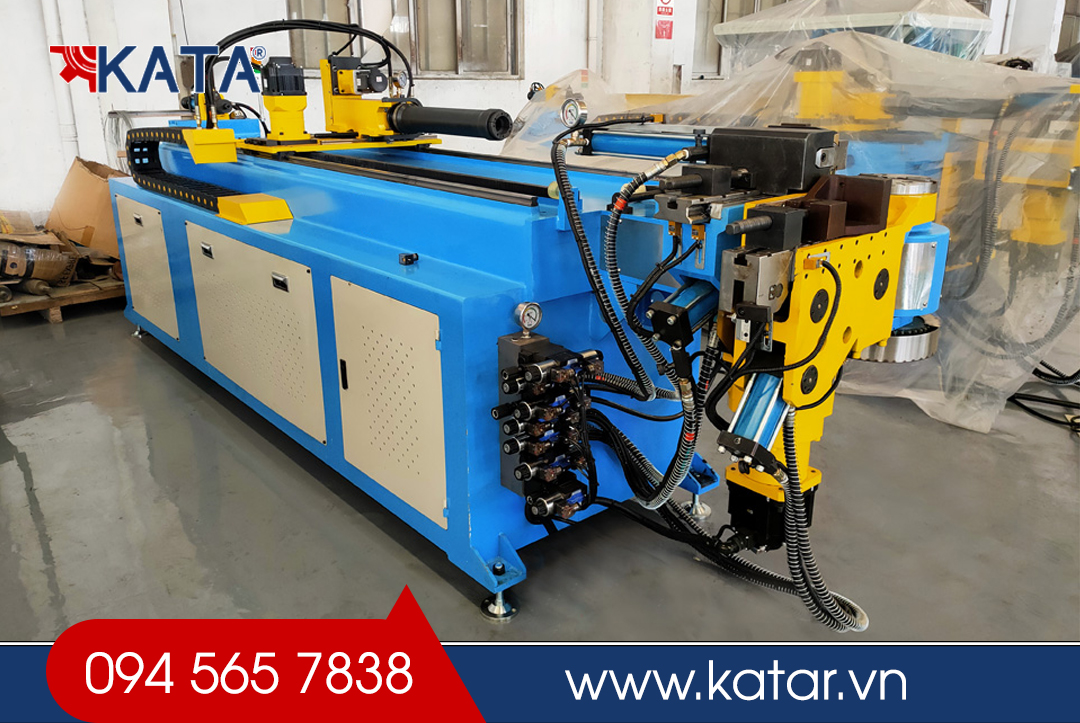

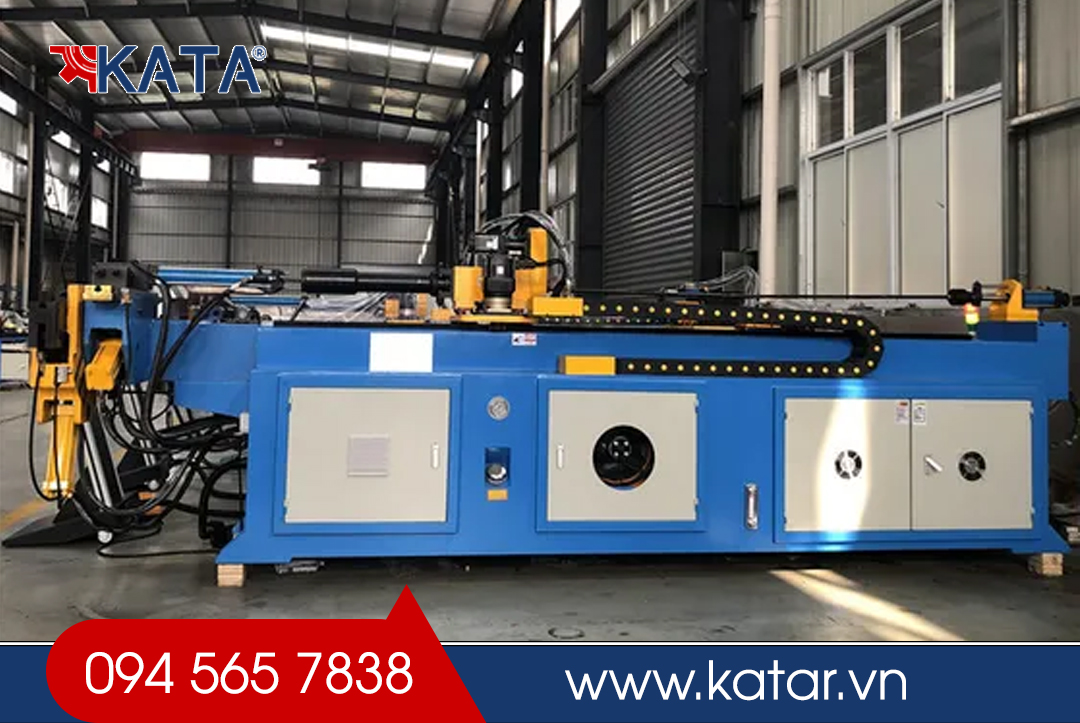

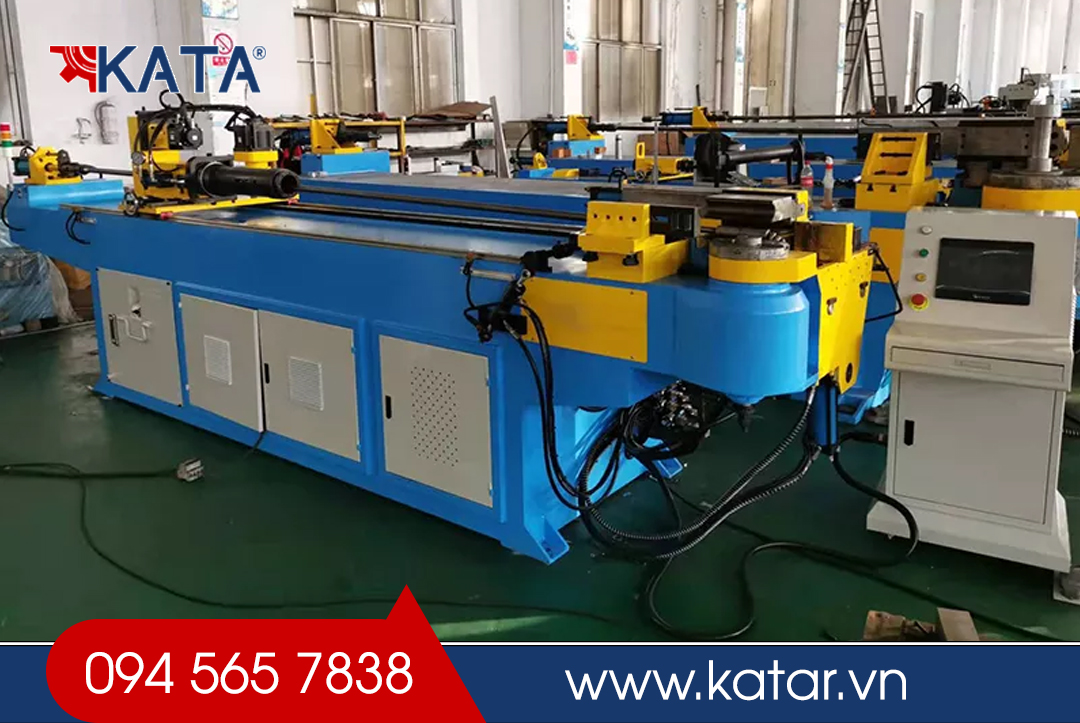

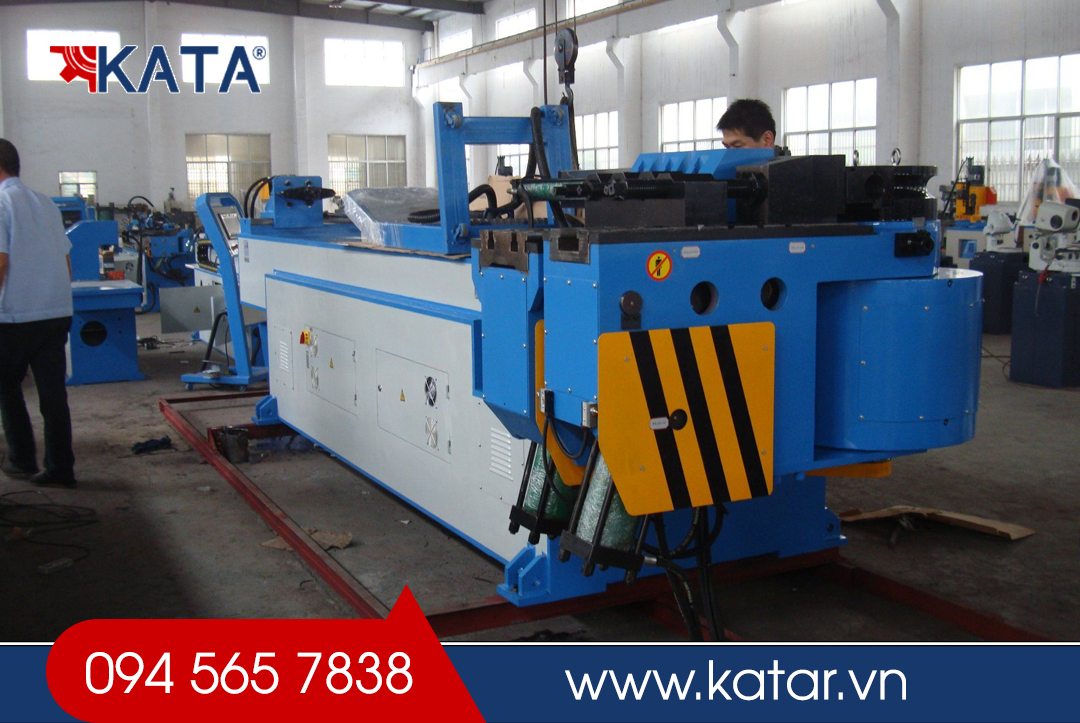

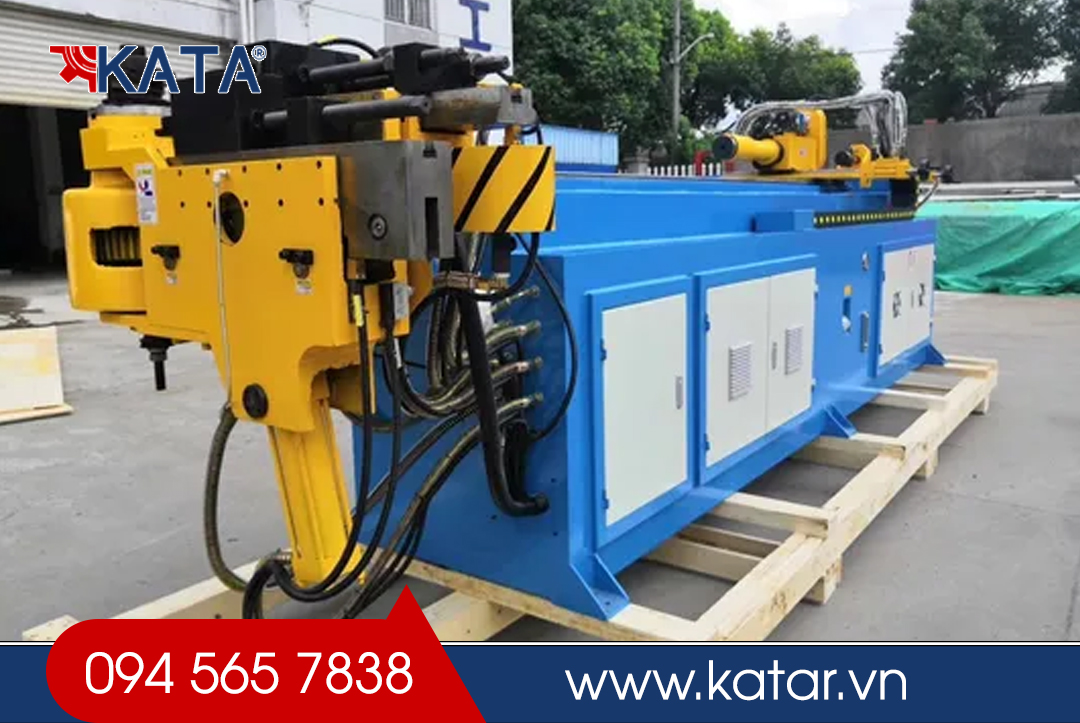

38NC Manual Square Pipe Bending Machine High-Precision Tube Bending Solution for Metal Fabrication

Precision Tube Bending Solution for Automotive, Furniture & Metal Fabrication Industries

Modern manufacturers demand high precision, repeatability, and production efficiency. The 38NC Manual Square Pipe Bending Machine is engineered to deliver accurate bends for round tubes, square pipes, stainless steel tubes, carbon steel pipes, aluminum tubing, and automotive exhaust components.

Designed with advanced servo-driven technology and an intelligent industrial control system, this machine provides consistent bending performance while remaining simple to operate, making it an excellent solution for manufacturers worldwide.

Why Choose the 38NC Manual Square Pipe Bending Machine ?

Unlike conventional hydraulic pipe benders, this machine combines servo precision with hydraulic power, ensuring every bend meets strict production requirements.

Key Advantages

+ High-precision servo-controlled bending

+ Smooth tube feeding and rotation

+ Excellent repeatability for mass production

+ Suitable for automotive exhaust systems

+ Easy tooling replacement

+ Industrial touchscreen interface

+ Stable hydraulic system

+ Low maintenance cost

+ High production efficiency

+ International standard operation

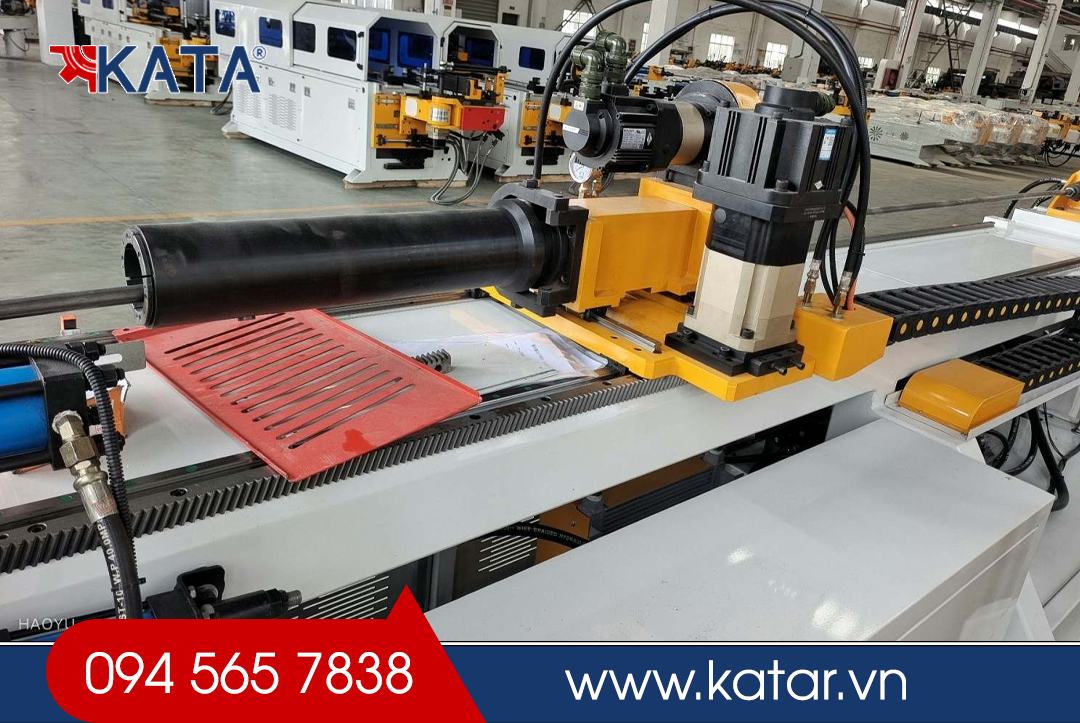

Advanced Servo-Controlled Bending Technology

The machine integrates three independent servo motors responsible for:

+ Tube Feeding

+ Tube Rotation

+ Tube Bending

This synchronized movement ensures:

+ Accurate bend positioning

+ Reduced dimensional errors

+ Stable production quality

+ Superior repeatability

+ Excellent performance for complex 3D tube geometries

The servo-driven design is particularly suitable for automotive exhaust systems, where two adjacent bends often require extremely tight spacing.

Perfect Solution for Automotive Exhaust Manufacturing

Automotive exhaust pipes are among the most demanding applications in tube bending.

The 38NC Manual Square Pipe Bending Machine provides:

+ Tight bend-to-bend spacing

+ Smooth tube surface

+ Minimal deformation

+ Reduced wrinkling

+ Excellent ovality control

+ Consistent production accuracy

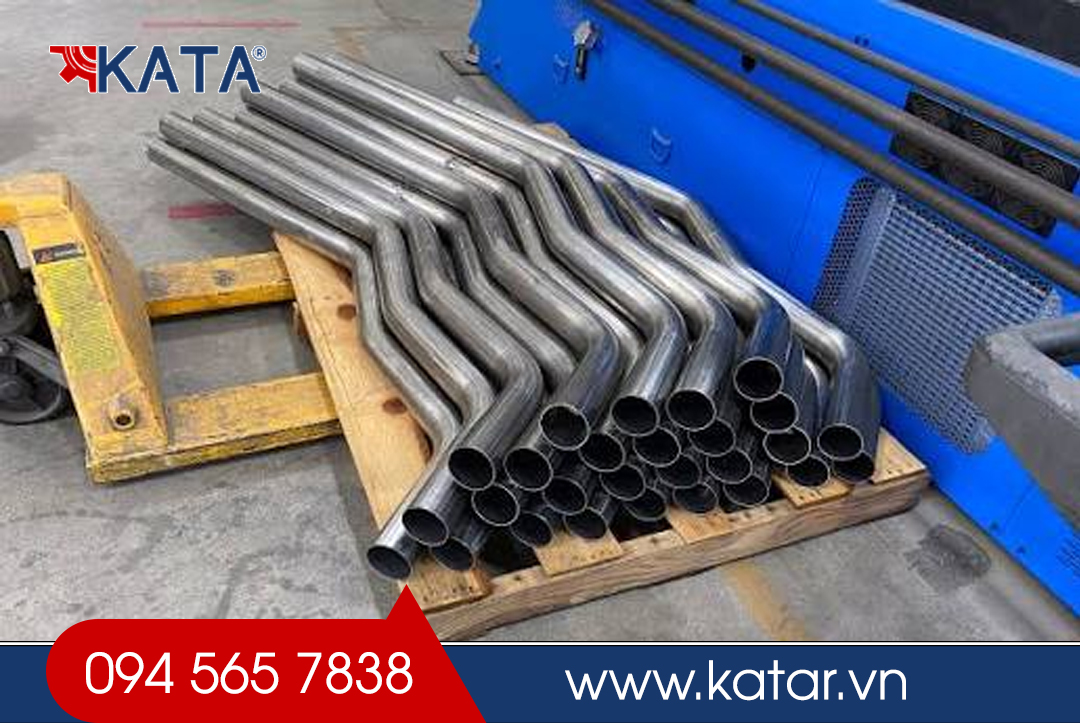

These capabilities make it ideal for manufacturing:

+ Car exhaust pipes

+ Motorcycle exhaust systems

+ Stainless exhaust tubing

+ Turbo piping

+ Performance exhaust components

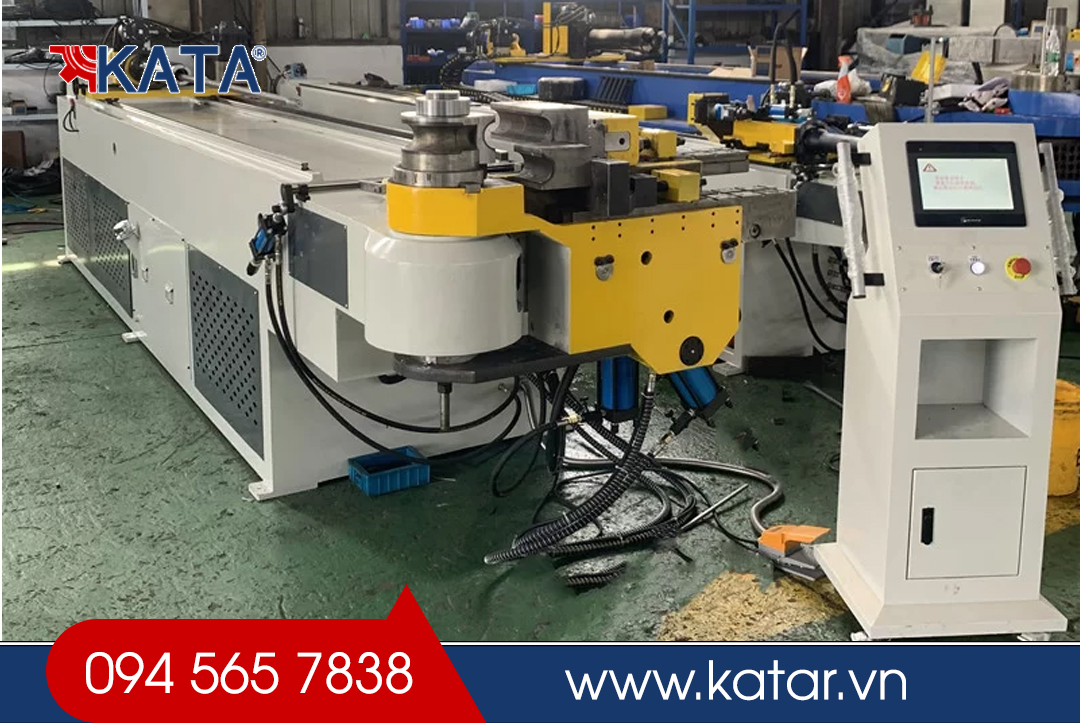

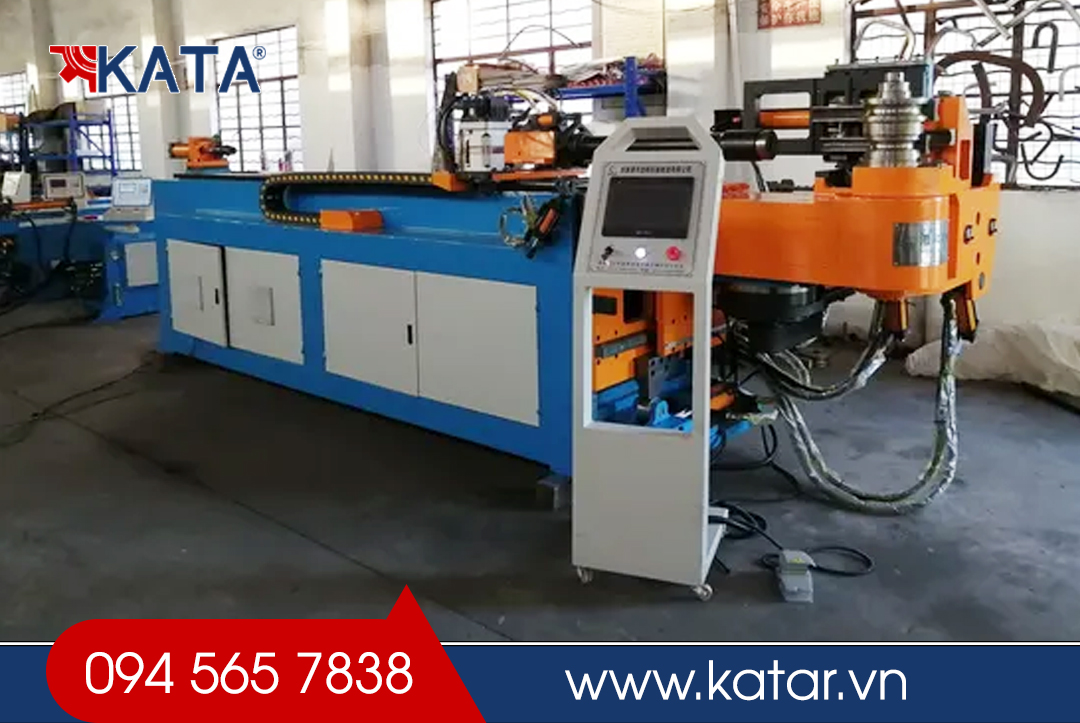

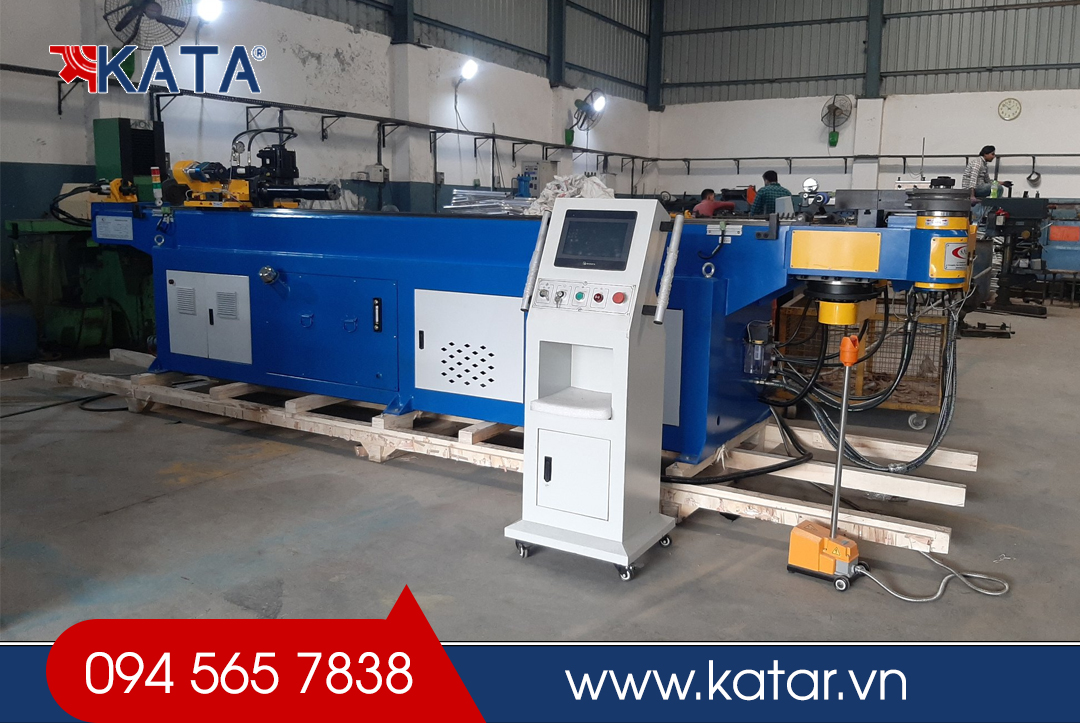

Industrial Touchscreen Control System

Operation is simplified through an Industrial PC equipped with a 15-inch touchscreen.

Operators can easily:

+ Program bending sequences

+ Modify parameters

+ Monitor production

+ Store bending programs

+ Access machine diagnostics

Even first-time users can quickly become familiar with the system thanks to the intuitive graphical interface.

Built-In Training Videos

To reduce training time, the system includes operation videos that guide users through:

+ Machine startup

+ Tube loading

+ Parameter settings

+ Production process

+ Maintenance procedures

+ Safety instructions

This significantly shortens the learning curve for new operators.

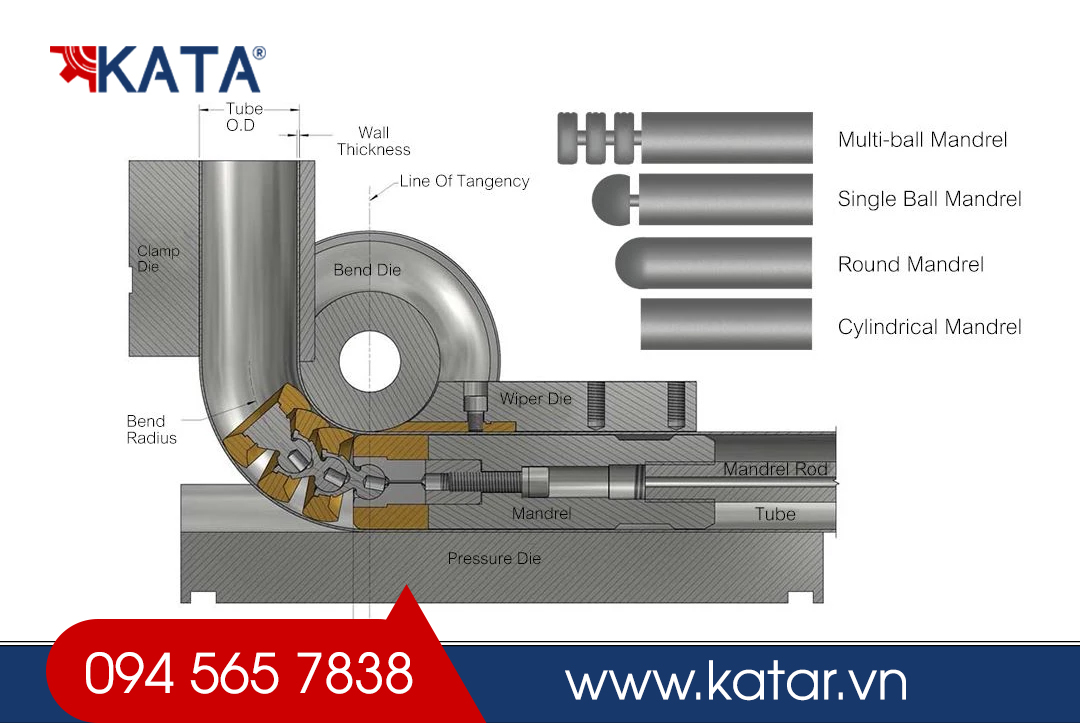

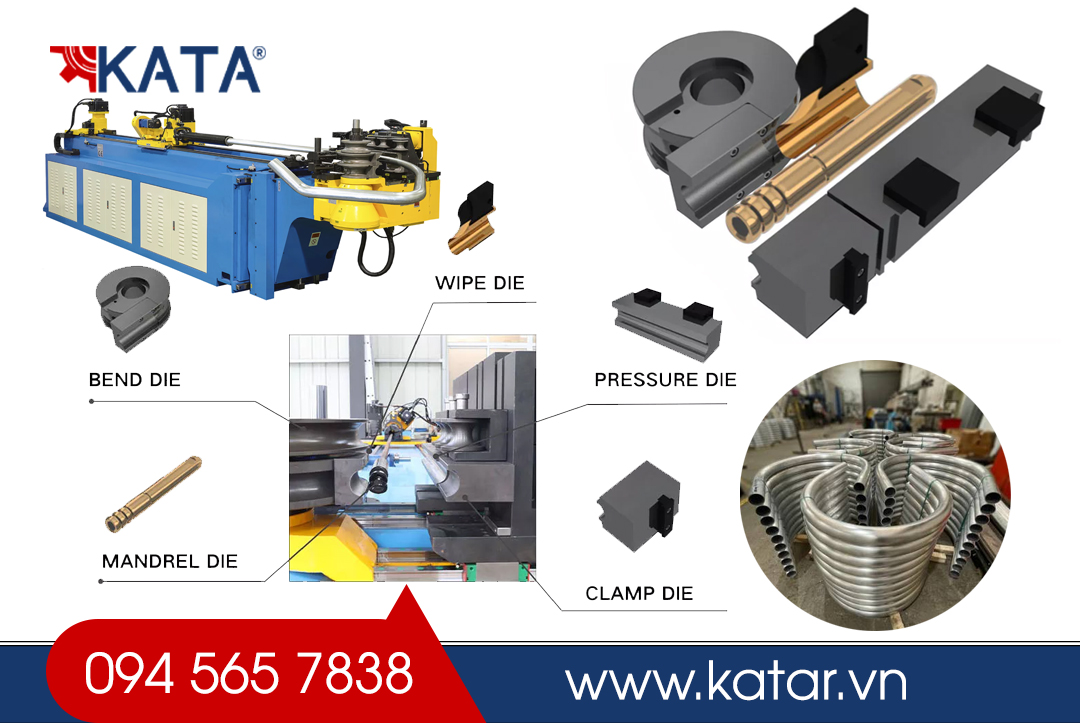

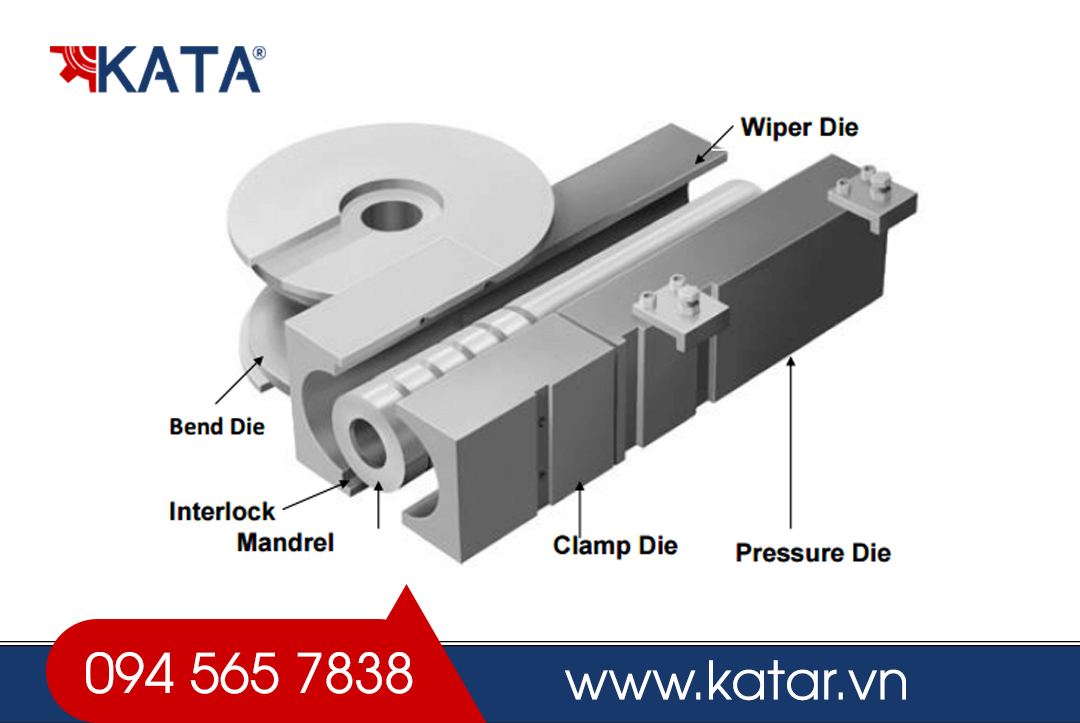

Fast Tooling Change

Changing bending dies is designed to be simple and efficient.

Dedicated instructional videos demonstrate each step of the tooling replacement process, allowing manufacturers to:

+ Minimize downtime

+ Increase production flexibility

+ Switch between pipe sizes quickly

+ Improve overall equipment utilization

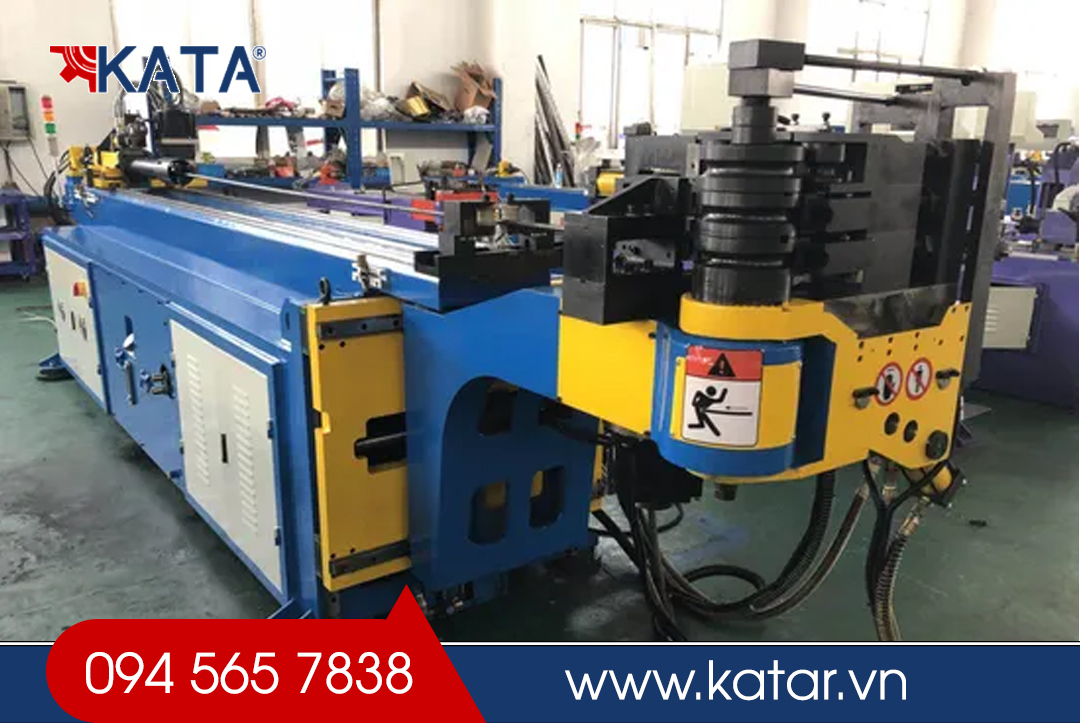

Optional Multi-Layer Tool Stack

The machine supports 1 to 6 stack layers depending on production requirements.

Benefits include:

+ Multiple bend radii

+ Various tooling configurations

+ Faster product changeover

+ Greater manufacturing flexibility

This feature is especially valuable for companies producing a wide range of tube components.

Applications

The 38NC Manual Square Pipe Bending Machine serves numerous industries worldwide.

Automotive Industry

+ Exhaust pipes

+ Brake lines

+ Fuel pipes

+ Chassis tubing

+ Roll cages

Furniture Manufacturing

+ Chair frames

+ Table frames

+ Office furniture

+ Metal shelving

Construction

+ Structural steel tubing

+ Handrails

+ Guardrails

+ Architectural components

Fitness Equipment

+ Gym machine frames

+ Exercise equipment

+ Sports structures

HVAC Industry

+ Air conditioning tubing

+ Refrigeration piping

+ Ventilation systems

Agricultural Equipment

+ Tractor frames

+ Machinery tubing

+ Equipment supports

Bicycle & Motorcycle Manufacturing

+ Bicycle frames

+ Motorcycle chassis

+ Handlebars

+ Performance tubing

Materials Supported

The machine is suitable for processing:

+ Carbon Steel

+ Stainless Steel

+ Mild Steel

+ Aluminum Tube

+ Copper Tube

+ Square Pipe

+ Rectangular Tube

+ Round Tube

Technical Specifications

Benefits for International Manufacturers

Whether you are producing thousands of automotive components or customized metal products, the 38NC Manual Square Pipe Bending Machine offers measurable advantages:

+ Increased production capacity

+ Reduced labor costs

+ Improved product consistency

+ Lower scrap rates

+ Faster setup time

+ Stable long-term operation

+ High return on investment

Its versatile design makes it suitable for manufacturers, OEM suppliers, fabrication workshops, and export-oriented production facilities.

Why Manufacturers Choose KATA Tube Bending Machines

KATA machines are engineered to meet the needs of modern metal fabrication with a focus on:

+ Precision engineering

+ Durable machine construction

+ User-friendly operation

+ Reliable hydraulic systems

+ Servo-controlled accuracy

+ Global technical support

+ Long service life

+ High production efficiency

Frequently Asked Questions (FAQ)

Can this machine bend square pipes ?

Yes. It is designed to process square pipes, rectangular tubes, and round tubes with appropriate tooling.

Is it suitable for stainless steel tubes ?

Absolutely. The machine delivers excellent results on stainless steel, carbon steel, aluminum, and other common metal tubes.

What industries use this machine ?

Automotive, furniture manufacturing, construction, fitness equipment, HVAC, agricultural machinery, bicycle manufacturing, and general metal fabrication.

Is operator training difficult ?

No. The intuitive 15-inch touchscreen and built-in instructional videos make operation straightforward, even for new users.

Can tooling be changed quickly ?

Yes. The machine is designed for fast tooling replacement, helping reduce downtime and improve production flexibility.

Conclusion

The 38NC Manual Square Pipe Bending Machine combines servo-driven precision, hydraulic reliability, and intelligent controls into a powerful solution for modern tube fabrication. From automotive exhaust systems to structural metal components, it delivers the accuracy, flexibility, and productivity required by manufacturers worldwide.
